As intelligent new energy vehicles become standard in the industry, the two-wheeled electric vehicle sector is also undergoing a profound technological revolution. High-end features such as voice interaction, automated driving assistance, intelligent navigation, and contactless unlocking are no longer exclusive to four-wheeled vehicles and are rapidly becoming commonplace in electric scooters. At industry exhibitions such as the South China International Electric Vehicle Show, models equipped with autonomous driving technology capable of handling complex road conditions have made their mark. Features such as Bluetooth unlocking, voice control, navigation projection, and assisted driving are becoming increasingly common in mass-produced models. The realization of these intelligent features relies heavily on the efficient, stable, and reliable power electronics core—power MOSFET devices.

 To precisely match the stringent demands for power devices in the intelligent upgrade of two-wheeled electric vehicles, VBsemi, a leading domestic power semiconductor manufacturer , has launched a series of high-performance, high-reliability, and low-power MOSFET products based on its profound technical accumulation. These products cover the entire application chain from core power systems to intelligent perception and interaction , providing a solid hardware foundation for the intelligent upgrade of two-wheeled electric vehicles.

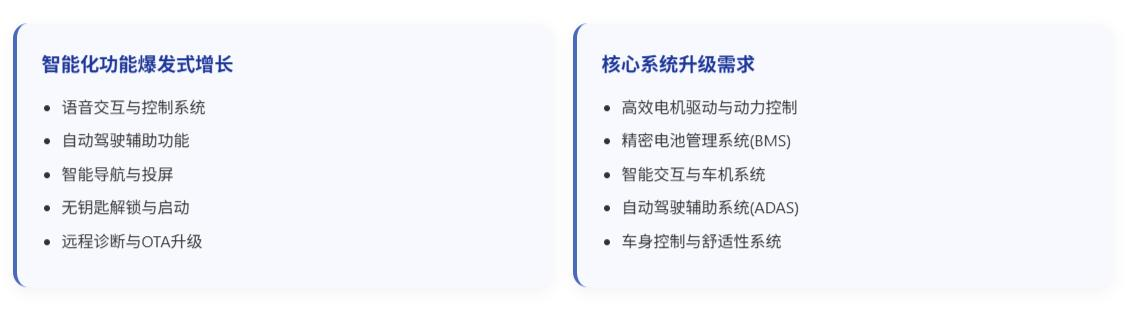

 The demand for MOSFET upgrades in the intelligent core modules of two-wheeled electric vehicles

The explosive growth of intelligent functions has placed higher demands on power devices in the following key modules:

1. High-efficiency motor drive and power control: MOSFETs are required to have extremely low on-resistance (RDS(on)) to reduce losses, high switching speeds to enable precise PWM control (such as automatic speed regulation, hill assist, and energy recovery), and excellent heat dissipation capabilities to cope with continuous high-current operation.

2. Precision Battery Management System (BMS): MOSFETs are required to provide low-loss switching, precise current control, and high reliability in the charging and discharging paths, cell balancing , and other links to ensure battery safety (overcharge, over-discharge, short-circuit, and over-temperature protection) and maximize driving range.

3. Intelligent interaction and vehicle systems: DC-DC converters that power displays, voice modules, Bluetooth/WiFi modules, and various sensors (radar, cameras), require high-efficiency, low-noise, small-package MOSFETs, with a particular emphasis on low quiescent current to extend standby time.

4. Automated Driving Assistance Systems (ADAS): Radar, ultrasonic sensors, and control unit power supply and signal processing circuits require MOSFETs with high switching frequency, low Qg (gate charge), and excellent EMI performance to ensure fast sensor response and system stability.

5. Body control and comfort systems: Lighting control (such as automatic headlights), anti-theft locks, seat cushion sensing, keyless start, etc. require cost-effective, highly reliable, and easy-to-drive MOSFETs.

VBsemi's full-scenario MOSFET solution recommendations

To address the pain points of the aforementioned intelligent modules, VBsemi offers the following market-proven, high-performance MOSFET product portfolio:

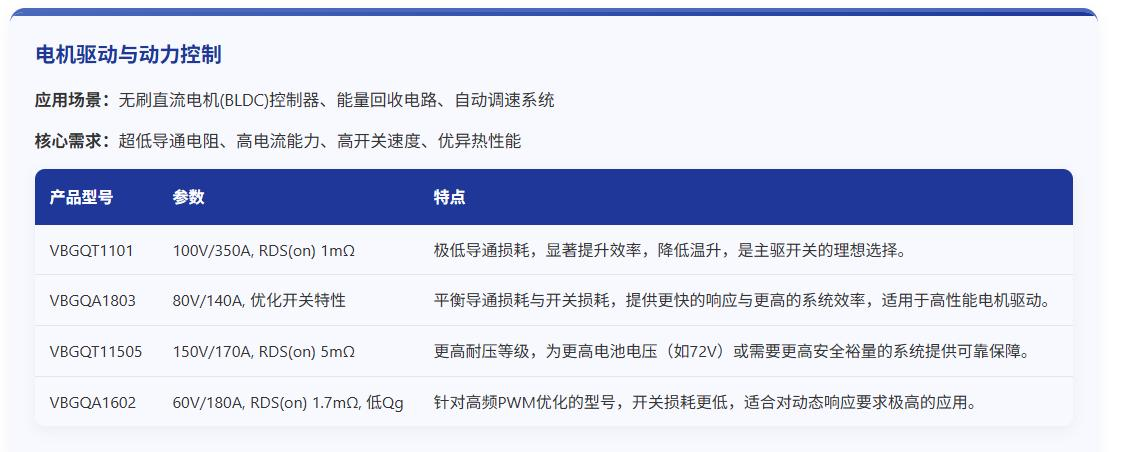

1. Motor drive and power control module - the efficient foundation of surging power

Application scenarios: brushless DC motor (BLDC) controller, motor phase switch, pre-driver/post-driver, energy recovery circuit.

Core requirements: ultra-low RDS(on), high current capability, high switching speed, and excellent thermal performance.

 VBsemi recommended products :

VBGQT1101 (100V, 350A, RDS(on) typ. 1mΩ): Extremely low conduction losses significantly improve efficiency and reduce temperature rise, making it an ideal choice for main drive switches.

VBGQA1803 (80V, 140A, optimized switching characteristics): Balances conduction and switching losses, providing faster response and higher system efficiency for high-performance motor drives.

VBGQT11505 (150V, 170A, RDS(on) typ. 5mΩ): A higher withstand voltage rating provides reliable protection for systems using higher battery voltages (e.g., 72V) or requiring a higher safety margin.

VBGQA1602 (60V, 180A, RDS(on) 1.7mΩ typical, low Qg): This model is optimized for high-frequency PWM, offering lower switching losses and is suitable for applications requiring extremely high dynamic response.

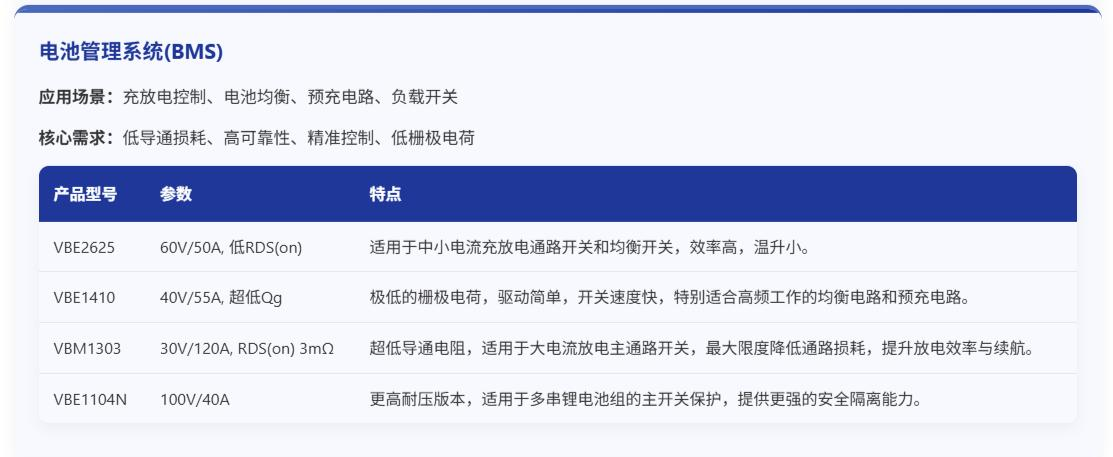

2. Battery Management System (BMS) - The Guardian of Safety and Battery Life

Application scenarios: charge and discharge control MOSFET (main switch), battery cell/group balancing switch, pre-charge circuit, load switch.

Core requirements: low conduction loss (reduced voltage drop), high reliability (preventing failure from causing danger), precise control capability (balance), and low gate charge (Qg, easy to drive).

VBsemi recommended products:

VBE2625 (60V, 50A, low RDS(on)): Suitable for small and medium current charge and discharge path switches and balancing switches, with high efficiency and low temperature rise.

VBE1410 (40V, 55A, ultra-low Qg): Extremely low gate charge, simple drive, and fast switching speed make it particularly suitable for high-frequency balancing circuits and pre-charge circuits.

VBM1303 (30V, 120A, 3mΩ typical RDS(on): Ultra-low on-resistance, suitable for high-current discharge main path switching, minimizing path losses and improving discharge efficiency and battery life.

VBE1104N (100V, 40A): A higher voltage version suitable for main switch protection of multi-string lithium battery packs, providing stronger safety isolation capabilities.

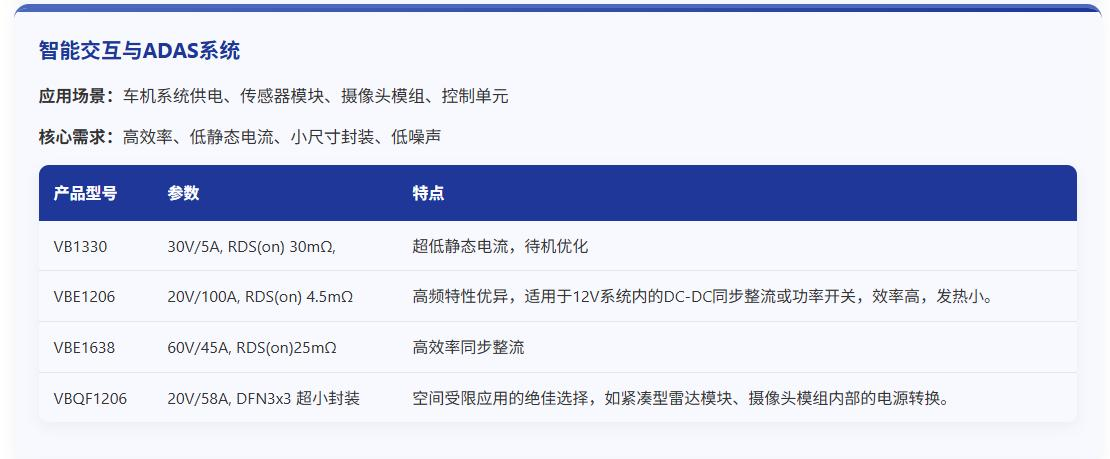

3. Intelligent Interaction, Vehicle Computer, and ADAS Systems - The Core of Smart Experience

Application scenarios: power supply for in-vehicle infotainment systems (DC-DC Buck/Boost), instrument panel/central control screen backlight, voice module/Bluetooth/WiFi module power supply, radar/ultrasonic sensor power supply, camera module power supply, and control unit (ECU) power supply.

Core requirements: high efficiency (extends standby time of small batteries), low quiescent current (sleep power consumption), small package size (saves space), low noise (avoids interference with sensitive signals), and high switching frequency (reduces peripheral components).

VBsemi recommended products:

VB1330 (30V, 5A, 30mΩ typical RDS(on), ultra-low quiescent current): Designed for low-power standby and always-on applications, it offers extremely low power consumption during sleep mode and is an ideal load switch or synchronous rectifier for sensors and low-power modules.

VBE1206 (20V, 100A, 4.5mΩ typical RDS(on), excellent high-frequency characteristics): Excellent switching performance, suitable for DC-DC synchronous rectification or power switching in 12V systems, high efficiency, and low heat generation.

VBE1638 (60V, 45A, 25mΩ typical RDS(on): Suitable for synchronous rectification or main switching in non-isolated DC-DC converters (Buck) such as 48V to 12V/5V, a core device for high-efficiency power supply.

VBQF1206 (20V, 58A, DFN3x3 ultra-small package): An excellent choice for space-constrained applications such as power conversion within compact radar modules and camera modules, providing a high-efficiency, compact solution.

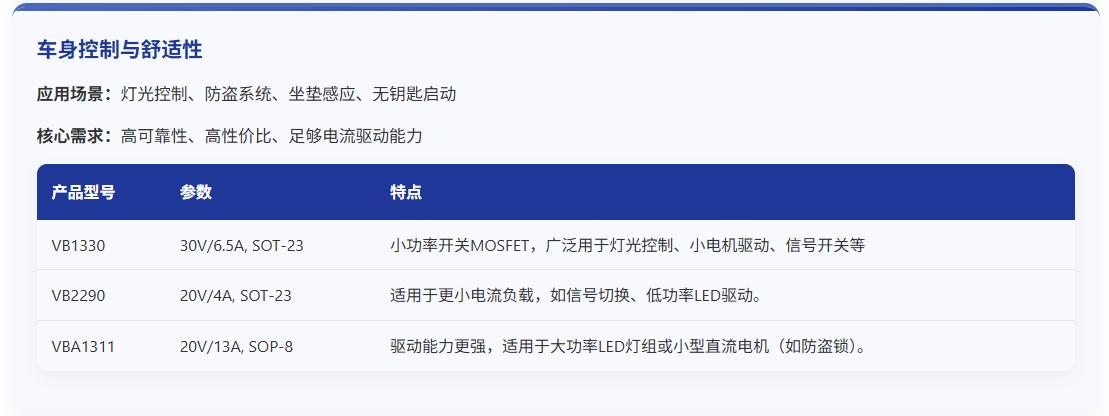

4. Body Control and Comfort Module - Convenient and Reliable Execution Unit

Application scenarios: LED headlight/taillight/ambience light driver, anti-theft lock motor/solenoid valve driver, seat cushion sensor switch, keyless entry system (RFID) power supply, and horn driver.

Core requirements: high reliability, high cost-effectiveness, sufficient current driving capability, and easy integration.

 VBsemi recommended products:

VB1330 (30V, 6.5A, SOT-23 package): A general-purpose, low-power switching MOSFET with high cost-effectiveness, widely used in lighting control, small motor drives, signal switches, etc.

VB2290 (20V, 4A, SOT-23 package): Suitable for smaller current loads such as signal switching and low-power LED driving.

VBA1311 (20V, 13A, SOP-8 package): Offers stronger driving capability and is suitable for high-power LED lamps or small DC motors (such as anti-theft locks).

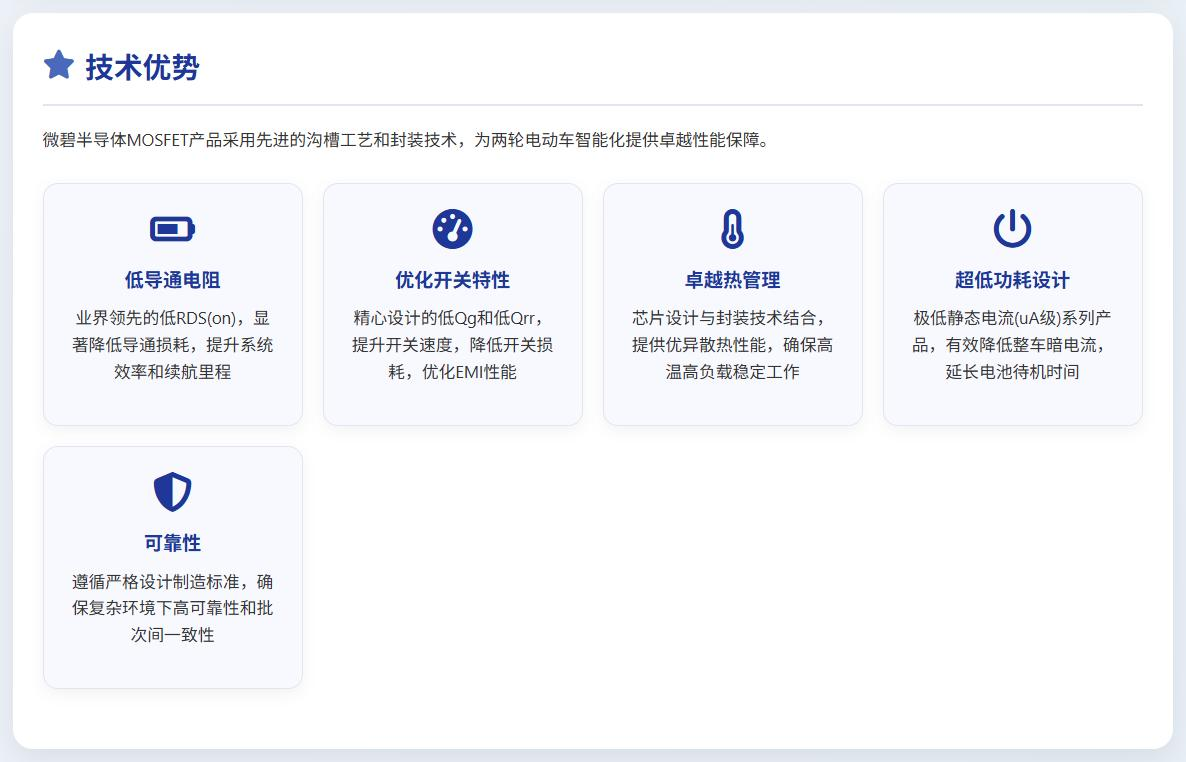

VBsemi MOSFET Technical Advantages

 Advanced trench technology: Achieve industry-leading low RDS(on) , significantly reduce conduction losses, and improve system efficiency and driving range.

Optimized switching characteristics: Carefully designed low Qg (gate charge) and low Qrr (reverse recovery charge) increase switching speed, reduce switching losses, and optimize EMI performance. It is especially suitable for high-frequency PWM controlled motor drives and DC-DC conversion.

Excellent thermal management: The chip design is combined with packaging technology (such as TOLL, TO-252, DFN, SOP-8, etc.) to provide excellent heat dissipation performance , ensuring stable operation of the device under high temperature and high load, and extending the service life.

Ultra-low power consumption design: For standby and constant power applications, we provide a series of products with extremely low quiescent current (uA level) , effectively reducing the dark current of the entire vehicle and extending the battery standby time.

Reliability and consistency: Product design, manufacturing, and testing processes adhere to strict standards to ensure high reliability and batch-to-batch consistency in the complex vibration, temperature, and humidity environments of electric vehicles .

Empowering the future of smart mobility

The trend toward intelligent two-wheeled electric vehicles is unstoppable, and its core lies in the comprehensive upgrade of electronic power systems. VBsemi, with a deep understanding of industry needs, provides efficient, reliable, and energy-efficient core components to two-wheeled electric vehicle manufacturers with high-performance MOSFET solutions covering the entire chain of power, power supply, control, and sensing .

From motor drives that enhance power response and range, to battery management systems (BMSs) that ensure battery safety and longevity, to various electronic systems enabling intelligent interaction and autonomous driving, VBsemi MOSFETs are the solid foundation for the stable operation of intelligent functions. Choosing VBsemi means choosing a powerful and reliable core for your smart electric vehicle.

With the exploration and application of higher-level intelligent functions such as L2 assisted driving and V2X vehicle networking on two-wheeled vehicles, VBsemi will continue to invest in research and development, continuously optimize product performance, and work with industry partners to jointly promote two-wheeled electric vehicles to move towards a smarter, safer and more efficient direction.

About VBsemi:
VBsemi is a leading power semiconductor design company in China, specializing in the research, development, design, and sales of power devices (MOSFET, IGBT, SiC/GaN devices and modules). Known for their high performance, high reliability, and cost-effectiveness , VBsemi's products are widely used in new energy vehicles (including two-wheelers and three-wheelers), charging stations, photovoltaic energy storage, industrial control, consumer electronics, and other fields. VBsemi is driven by technological innovation and is committed to providing global customers with superior power solutions, enabling green energy and smart mobility.
