Model: NTS4001NT1G-VB.
Silk screen: VBK1270.
Brand: VBsemi.

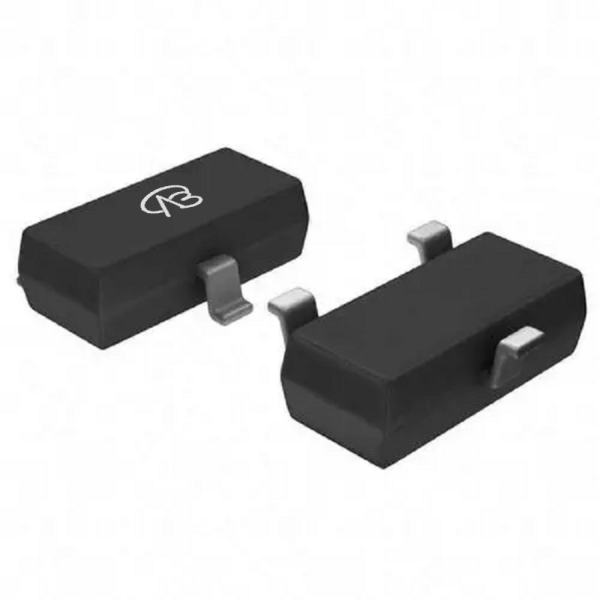

Package: SC70-3.
.
**Detailed parameter description:**.
- Architecture: N-Channel MOSFET.
- Voltage level: 20V.
- Current capability: 4A.
- RDS(ON): 45mΩ @ VGS=10V, VGS=12V.
- Threshold voltage(Vth): 1~3V.
.
**Application introduction:**.
NTS4001NT1G-VB is an N-Channel MOSFET in SC70-3 package with moderate current capability and relatively low on-resistance. The following are the fields and modules that this device may be applied to: .
.
1. **Power module:** Due to the small package and moderate current capacity, it is suitable for small power modules such as portable electronic devices. .
.
2. **Battery management:** It can be used in battery charge and discharge management modules to help achieve efficient battery energy utilization. .
.
3. **Signal switch:** As an N-Channel MOSFET, it can be used as a signal switch to control the on and off of the circuit, suitable for various low-power applications. .
.
4. **Sensor module:** Due to the small size and low power consumption characteristics, it is suitable for embedded sensor modules to achieve precise control of sensors. .
.
Please read the device data sheet carefully before use and determine whether it is suitable according to the specific application requirements.
