Model: AOD603A-VB .
Silk screen: VBE5638 .
Brand: VBsemi .
.
**Parameter:** .

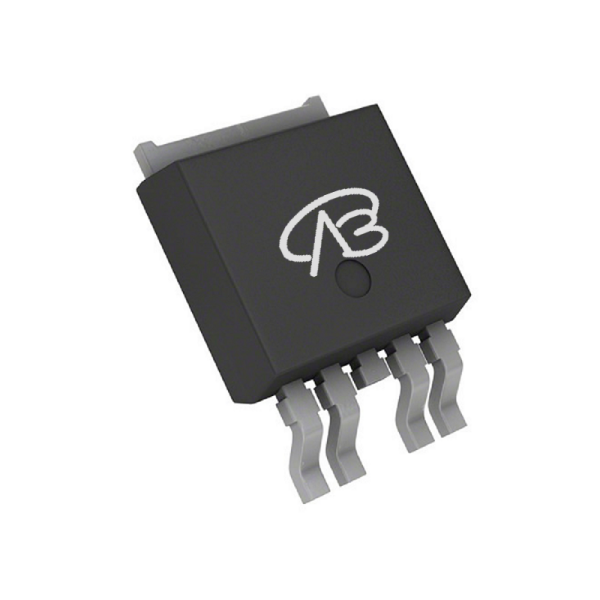

- Package: TO252-4 .
- Channel Type: N+P—Channel .
- Maximum voltage: ±60V .
- Maximum current: 35A (forward) / 18A (reverse) .
- Turn-on resistance (RDS(ON)): 38mΩ @ VGS=10V, 58mΩ @ VGS=20V .
- Threshold voltage (Vth): ±1~3V .
.
**Application introduction:** .
AOD603A-VB is a This TO252-4 packaged N+P channel MOSFET is suitable for a variety of application scenarios. Its parameters and characteristics make it widely used in modules in the following fields: .
.
1. **Power module:** Since AOD603A-VB has high maximum voltage and current capabilities, it can be used for power switches module, providing stable power output. .
.
2. **Drive module:** Suitable for motor drives and other applications requiring high current and high voltage switching. .
.
3. **Power Inverter:** Used in solar inverters, electric vehicle inverters and other fields to support high-efficiency power conversion. .
.
4. **Switching power supply:** Among various switching power supplies, AOD603A-VB can be used to build high-performance DC-DC converters. .
.
5. **Power management module:** Due to its superior electrical performance, it can be used in various power management circuits, such as overvoltage protection, overcurrent protection, etc. .
.
Please note that the specific application areas depend on the specific requirements and design of the project. When using this device, be sure to refer to its data sheet for detailed electrical performance and operating conditions.
