《MOSFET Selection》- Explore More MOSFET Products

Get to know two MOSFETs every day.

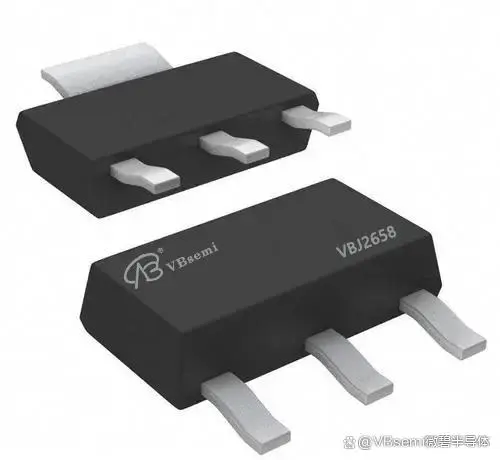

1. MOSFET Model: NDT2955

   A P-channel MOSFET

   Marking: VBJ2658

   Package: SOT223

2. Brand: VBsemi

3. Specifications:

   Maximum Voltage: -60V

4. Maximum Current: -6.5A

5. RDS(ON) at 10V: 58mΩ

   RDS(ON) at 45V: 70mΩ

6. Gate-Source Voltage Range: ±20Vgs

7. Threshold Voltage: -1~-3V

8. Applications:

   Industrial Automation: NDT2955 can be used for driving motors, managing inverters, and achieving efficient energy conversion in various machinery.

   LED

9. Lighting Applications: Efficiently drive LEDs to achieve the desired lighting effect.

10. Various Electronic Devices: Play an important role in optimizing circuit performance and overall system efficiency.

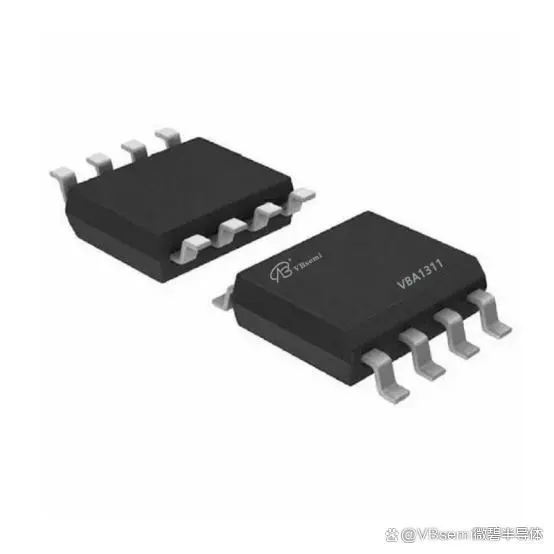

11. MOSFET Model: AM4424N-T1-PF

    An N-channel MOSFET

12. Marking: VBA1311

13. Package: SOP8




14. Specifications:

    Maximum Voltage: 30V

15. Maximum Drain Current: 12A

16. RDS(ON) at 10V: 12mΩ

    RDS(ON) at 45V: 15mΩ

17. Maximum Gate-Source Voltage: ±20V

18. Threshold Voltage Range: 0.8~2.5V




    Applications:

    Power

19. Management: Can be used for power switches, battery charge and discharge management, etc.

    Motor Drive: Can be used for motor control, motor drive, etc.

20. Inverters: Can be used for inverter control, frequency converters, etc.

21. Switching Power Supplies: Can be used for switching power supply control, DC-DC converters, etc.

22. LED Driving: Can be used for LED lighting driving, backlight driving, etc.

23. AM4424N-T1-PF (VBA1311) is suitable for applications requiring medium voltage endurance, low drain-source resistance, and higher current.
