Power Device Selection Guide for UWB Digital Keys, Intelligent Sensing and Active Alarm Systems

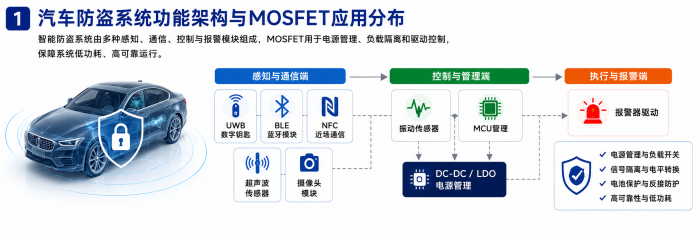

With the rapid development of smart vehicles, digital keys, and Internet of Vehicles technology, traditional mechanical anti-theft systems are gradually upgrading toward intelligence, proactiveness, and multi-sensor integration. Current mainstream automotive anti-theft systems have expanded from simple door lock control to multiple functional modules including UWB digital keys, BLE Bluetooth identification, NFC near-field communication, in-vehicle and exterior camera monitoring, vibration detection, ultrasonic sensing, and active audio-visual alarms.

In the entire automotive anti-theft system, MOSFETs undertake critical tasks such as power management, load switching, signal isolation, battery protection, and alarm driving. These devices not only need to possess characteristics such as low power consumption, small package size, and high reliability, but must also meet the requirements for long-term stable operation of automotive electronics.

For intelligent vehicle anti-theft systems, VBsemi offers a complete MOSFET selection solution covering core functional modules such as digital keys, wireless communication, sensor management, MCU power supply, and alarm drivers. This helps engineers achieve low-loss, fast-switching, and high-reliability designs within a compact layout.

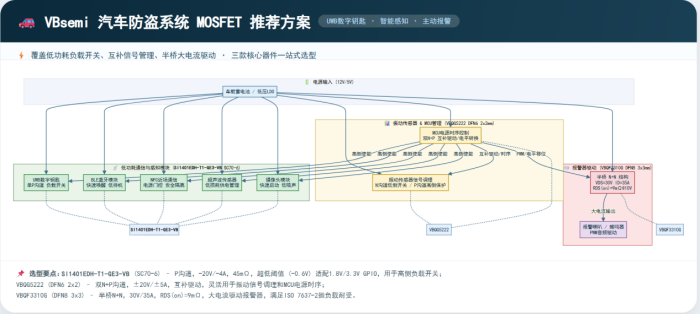

The specific allocation is as follows:

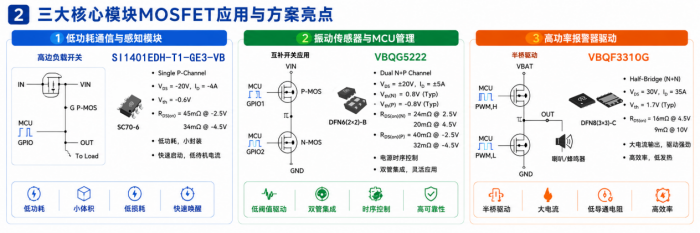

Detailed analysis of the module

1. Low-power communication and sensing modules (UWB/BLE/NFC/ultrasound/camera)

Recommended model：SI1401EDH-T1-GE3-VB

Package：SC70-6 (2.0×2.1mm)

Configuration：Single P-Channel

Key parameters：VDS=-20V，ID=-4A，Vth=-0.6V，RDS(on)=45mΩ(@VGS=-2.5V)/34mΩ(@VGS=-4.5V)

These modules are typically powered by batteries or low-voltage LDOs, requiring load switches for power management to reduce standby power consumption. The P-channel structure of the SI1401EDH-T1-GE3-VB is extremely convenient for high-side driving: it turns on simply by pulling the gate low, without the need for bootstrapping. Its threshold voltage of only -0.6V allows direct driving from 1.8V or 3.3V GPIOs, perfectly adapting to the low-voltage logic of BLE SoCs and NFC controllers. The SC70-6 package occupies less than 5mm² of board space, easily integrating into space-constrained key modules or sensor boards. The Trench process ensures low on-resistance even at a rated current of -4A, reducing conduction losses and temperature rise.

2. Vibration sensor and MCU management

Recommended model：VBQG5222

Package：DFN6(2×2mm)

Configuration：Dual N+P-Channel

Key parmeters：VDS=±20V，ID=±5A；N channel Vth=0.8V, RDS(on)=24mΩ(@2.5V)/20mΩ(@4.5V)；P channelVth=-0.8V, RDS(on)=40mΩ(@-2.5V)/32mΩ(@-4.5V)

Vibration sensor signal conditioning circuits often require level shifting or complementary driving. The VBQG5222 integrates an N-channel and a P-channel MOSFET, providing high design flexibility. For example, the N-MOS can be used for low-side switching to drive a vibration motor or power supply to the sensor, while the P-MOS serves as high-side reverse connection protection or a load switch. Its ±12V gate-source voltage range and low threshold voltage of 0.8V/-0.8V mean that a weak sensor wake-up signal is sufficient to activate the MOSFET. In the MCU management section, the dual transistors work together to achieve timing control of multiple power rails and generate reset signals. The DFN6's miniature package facilitates placement near the MCU, reducing trace inductance.

3. High-power alarm drive

Recommended model：VBQF3310G

Package：DFN8(3×3mm)

Configuration：Half-Bridge N+N

Key parameter：VDS=30V，ID=35A，Vth=1.7V，RDS(on)=16mΩ(@VGS=4.5V)/9mΩ(@VGS=10V)

Alarm horns or buzzers require high-efficiency half-bridge or full-bridge drivers to generate audio signals through alternating high and low-side conduction. The VBQF3310G integrates two N-channel MOSFETs to form a half-bridge, with flexible common-drain/common-source configurations. The typical RDS(on) of the two MOSFETs is only 16mΩ at 4.5V, dropping to 9mΩ at 10V, allowing for continuous current flow of 35A and easily driving alarm voice coils in the tens of watt range. A 1.7V gate threshold ensures reliable switching of ordinary MCU PWM outputs after level shifting. The compact DFN8 package facilitates heat dissipation design, preventing the system from overheating during prolonged alarm operation. Simultaneously, the 30V withstand voltage can withstand transient spikes common on automotive power buses, and with appropriate TVS, it can meet the ISO 7637-2 load dump test.

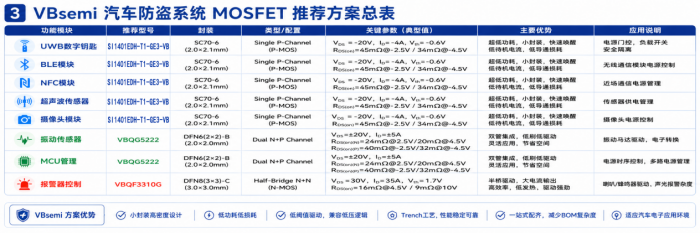

Summary of Selection Advantages

Small package, high density: SC70-6, DFN6, and DFN8 are all ultra-small lead-free packages, which are in line with the trend of "module miniaturization" in automotive electronics.

Low gate voltage drive capability: The threshold voltage of SI1401EDH-T1-GE3-VB and VBQG5222 is less than 1V, which can be directly controlled by low voltage logic, eliminating the need for an additional driver chip.

Trench technology, low on-resistance: provides lower RDS(on) in the same package size, reducing losses and improving reliability.

Flexible configuration, one-stop solution: from single P-channel to complementary dual-channel to integrated half-bridge, meeting all needs of communication, sensing, control and drive, reducing the number of BOM suppliers.

Adaptable to automotive environments: Although the components in this solution are industrial-grade, their wide operating temperature range and reliable Trench structure enable them to cope with the temperature environment inside the vehicle where the anti-theft system is located.

VBsemi utilizes three MOSFETs—SI1401EDH-T1-GE3-VB, VBQG5222, and VBQF3310G—as the core to build a high-efficiency, compact power solution covering all functional aspects of automotive anti-theft systems. Designers can directly follow these recommendations to develop schematics and quickly complete the power supply and drive circuit design for intelligent anti-theft terminals. For special parameter requirements, please contact VBsemi for further technical support and sample testing.
