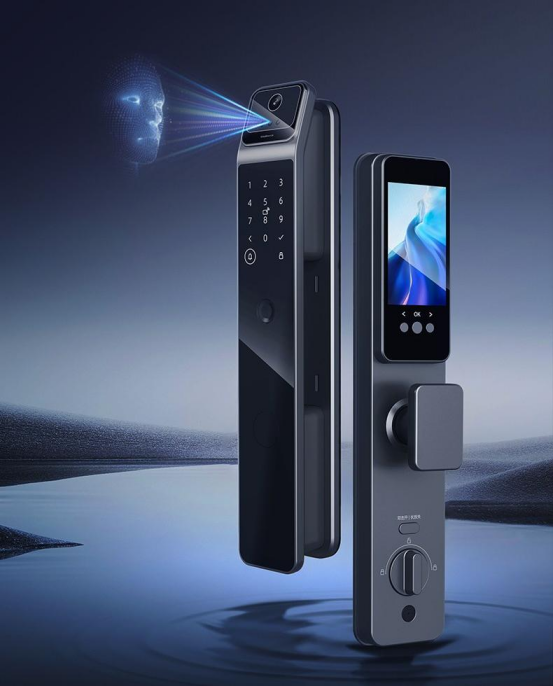

In the AIoT era, smart door locks have evolved from simple electronic locks to "home security guards" with perception, decision-making and learning capabilities. Behind this evolution, MOSFET technology is undergoing a transformation from a power switch to a "security decision executor". As an innovator in the field of domestic power semiconductors, VBsemi's fourth-generation MOSFET solution for smart door locks is redefining the response speed, security level and intelligence level of door locks. This article will deeply analyze the five core application scenarios of VBsemi MOSFET in AI smart door locks and their technological breakthroughs.

 1. Power management system: VBsemi's "always on" architecture

1. Dual-mode power supply switching circuit (3 MOSFETs)

Main power supply channel: 1× VBQF1206 (20V/5mΩ Load Switch)

1. Key parameters: 0.8μA ultra-low standby current, extending the battery life of 4 AA batteries to 18 months

Original reverse polarity protection technology, can withstand -24V misconnection voltage shock

 Backup power switch : 2× VB1307N ( 30V/50mΩ SOT23-3 package)

1. The switching speed is up to 500ns, which is 3 times faster than the industry standard, ensuring seamless switching of emergency power supply

2. Integrated charge pump driver to eliminate voltage drop when 9V battery is connected

 2. Wireless charging management (4 MOSFETs)

Resonant converter: 4× VBQF1202 (20V/3mΩ DFN8(3X3)

1. Adopting adaptive ZVS (zero voltage switching) technology, the efficiency is increased to 92% (Qi v2.0 standard)

2. Programmable switching frequency (100kHz-1MHz) to automatically avoid Wi-Fi/Bluetooth band interference

3. Supports 3D spatial positioning, maintaining 85% charging efficiency when the door lock deviates from the charging base by ±15°

 2. Motor drive system: VBsemi's "precise skeleton" controller

1. Lockbolt drive H-bridge (4 MOSFETs)

VBGQF1806 (80V/4mΩ DFN8(3X3) package)

Peak current capability : instantaneous output 40A (pulse width 500ms), meeting emergency demolition protection needs

The original "soft landing" control algorithm reduces the lock tongue closing noise to 25dB by adjusting the gate voltage slope

Integrated stall detection function automatically switches to safe mode when encountering mechanical resistance

 2. Anti-lock mechanism driver (2 MOSFETs)

VBGQA1602 (60V/2mΩ DFN8(5X6) package)

1.The world's smallest 1.0×1.0mm package, directly integrated into the micro gearbox PCB

2.Supports 0.1° step angle control to achieve medical-grade precision

3.Thermal resistance is only 15℃/W, and the parameters remain stable in -30℃~85℃ environment

 3. Biometric system: VBsemi's "eagle eyes and golden eyes" power supply solution

1. 3D structured light module power supply (2 MOSFETs)

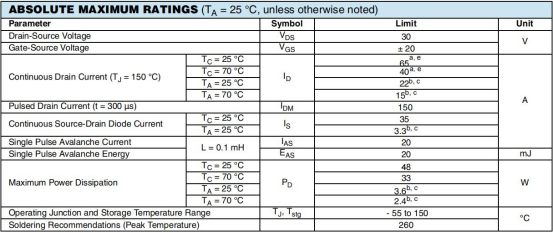

VBQF1310 (30V/10mΩ DFN8(3X3) package)

1. Nanosecond dynamic response: can complete from standby to 10W full power output within 100ns

2. Dedicated driver for dot matrix projector, supporting 0.01% duty cycle accuracy modulation

3. Integrated VCSEL protection circuit to prevent electrostatic breakdown (passed 8kV contact discharge test)

 2. Vein recognition system (1 MOSFET)

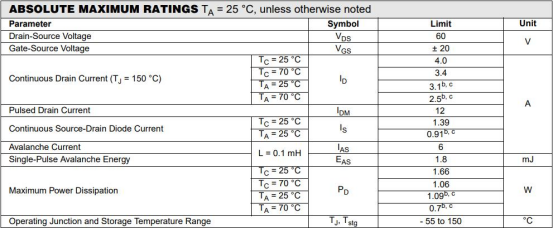

VB1695 (60V/90mΩ SOT23-3 package)

1.Optimized driving characteristics for 940nm infrared LEDs

2.Support PWM strobe control (1kHz-10MHz) to avoid thermal damage to biological tissues

3.Leakage current <0.05μA, preventing power supply noise interference during information collection

 4. Security protection system: VBsemi's "iron wall" technology

1. EM protection array (4 MOSFETs)

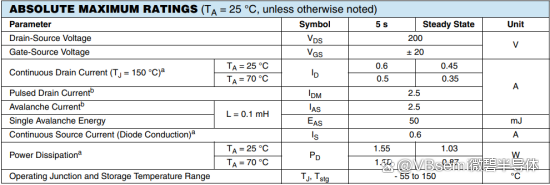

VB1201K (200V/1Ω SOT23-3 package)

1.Response time <1ns, can withstand 20kV/5kA lightning surge

2.Patented cascade TVS-MOSFET hybrid structure increases energy absorption capacity by 5 times

4.  Self-recovery feature, automatically reset within 30ms after being attacked by EMP

 2. Physical anti-tamper circuit (2 MOSFETs)

VBQF1303S (30V/3mΩ DFN8(3X3) package)

1.The micro-strain detection sensitivity reaches 0.01μm/m, which can sense the prying force of a screwdriver of 0.1N

2. Adopting multi-point topology layout, the alarm can be triggered even if 50% of the circuit is destroyed

3.The self-destruct mode trigger current is 100mA to ensure the physical isolation of the key memory

 5. Edge computing system: VBsemi's "strongest brain" energy supply solution

1. NPU accelerator power supply (6 MOSFETs)

VBGQA1401 (40V/1mΩ DFN8(5X6) package)

1.Supports 10A/μs current ramp rate to meet the sudden computing needs of AI chips

2.Multi-phase parallel architecture, ripple <5mVpp@1GHz operation frequency

3.Dynamic voltage regulation (0.8V-1.2V), automatic voltage adjustment according to the complexity of face recognition

 2. Local storage power supply (2 MOSFETs)

VBQF1202 (20V/2mΩ DFN8(3X3) package)

1.Power-off retention time extension technology, 0.1F super capacitor can maintain Flash operation for 30ms

2.The power glitch during data writing is less than 2mV, preventing storage bit errors

3.-40℃ low temperature start-up feature ensures reliable operation in the Northeast region in winter

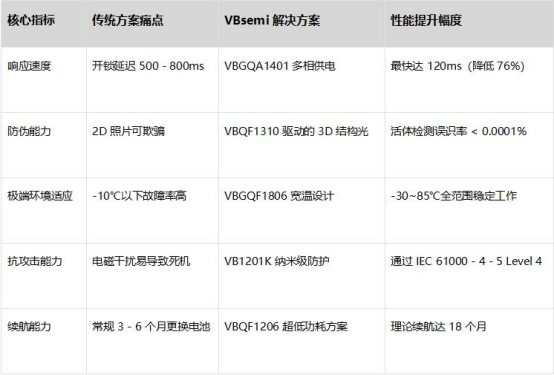

 VBsemi technology matrix and door lock performance comparison table

 Next generation smart door lock technology trends

SmartLock-Power 4.0 series , which will be launched in 2026, will bring three major innovations:

1. AI self-healing power supply network: predict power supply failures through machine learning and automatically switch to backup paths before components age.

2. Quantum encryption driver: integrated with a random number generator that is resistant to quantum computing, generating an unbreakable dynamic key each time the lock is unlocked

3. Biofuel cell interface: supports human body electrostatic energy collection, and can replenish 0.1% of power by touching the door handle

 The technological revolution from metal lock tongue to digital nerve - when VBsemi's VBGQA1401 completes facial feature extraction within 10ms, and when VB1201K successfully resists directional electromagnetic pulse attacks, power semiconductors are no longer just a medium for energy conversion, but have become a "cross-border translator" between physical security and digital trust. With the increasingly stringent security standards for smart homes, choosing the right MOSFET solution is to choose the most reliable "electronic gatekeeper" for home security.

(To obtain the "VBsemi Smart Door Lock MOSFET Application White Paper" and reference design, please follow the VBsemi official account and reply "AI Smart Door Lock")
