Electric toothbrushes have become a popular choice for modern oral care due to their efficient cleaning and convenient use. With its unique performance, the VB1240 MOSFET is deeply involved in the realization of the core functions of electric toothbrushes, ensuring the efficient and stable operation of the product.

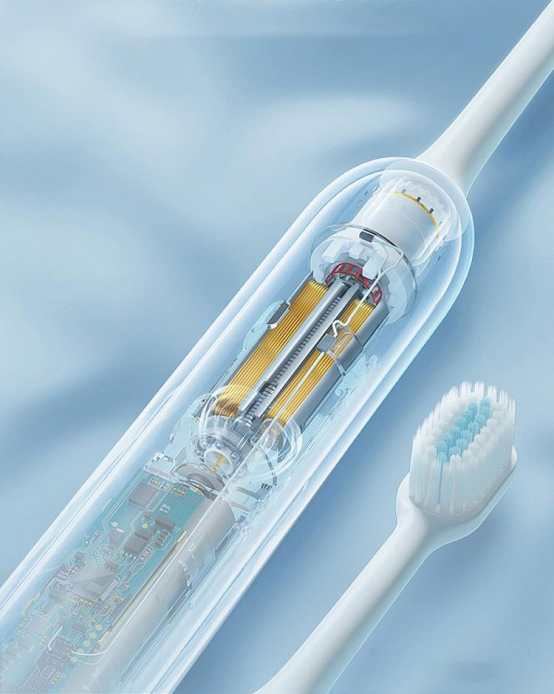

 1. The core structure and operation of electric toothbrush

The electric toothbrush is mainly composed of a motor, a battery, a control system and a brush head. The motor provides vibration or rotation power, the battery supplies power, the control system adjusts the motor, and the brush head is responsible for cleaning. VB1240 is a single N-type MOSFET, with a 20V VDS to meet the operating voltage requirements, a ±12V VGS to ensure control safety, and a 0.5 - 1.5V Vth to achieve precise conduction.

 2. Application of VB1240 in electric toothbrush

1. Motor drive control

VB1240 uses PWM technology to adjust the motor speed. In different cleaning modes, the control system changes its on-time: the daily mode maintains a medium speed, and the deep cleaning mode increases the speed. Its RDS (on) is 42mΩ when VGS = 2.5V, and drops to 28mΩ when VGS = 4.5V. The low on-resistance reduces losses and extends battery life.

2. Battery management and protection

When charging, VB1240 turns on when the battery voltage is low and turns off when it is full to prevent overcharging. During the discharge process, the current is monitored in real time and the circuit is quickly cut off when there is overcurrent, such as when the motor is stalled to protect the battery and motor and extend the battery life.

(III) Circuit on/off and mode switching

VB1240 controls the on/off of the electric toothbrush circuit, and turns the machine on and off by pressing the power button. In multi-mode products, it switches the circuit according to user instructions to achieve different cleaning modes such as sensitive and massage.

 3. Key points for selection

1. Electrical parameter adaptation

The 20V VDS copes with operating voltage fluctuations, the 28 - 42mΩ low on-resistance reduces losses, and the 6A ID meets the motor current requirements.

(II) Performance characteristics considerations

Based on Trench technology, VB1240 has fast switching speed and timely response control; it has good temperature stability and small parameter fluctuations during operation.

3. Packaging and reliability

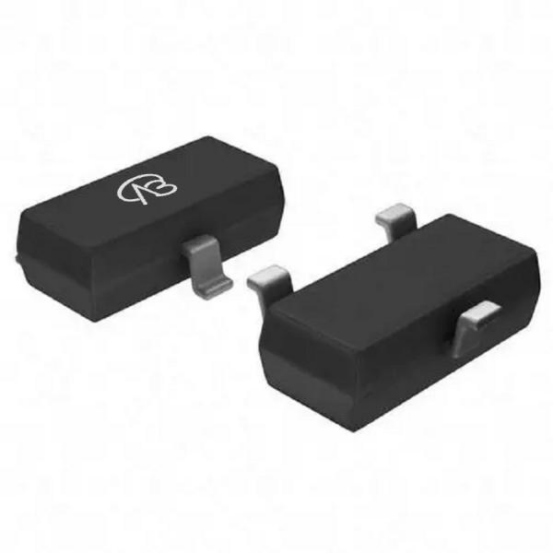

The SOT23-3 package is small and fits the space of an electric toothbrush. It has good heat dissipation and mechanical properties. It has strong anti-interference ability to ensure stable operation of the equipment.

 IV. Future Prospects

In the future, the intelligent upgrade of electric toothbrushes will place higher demands on MOSFET. VB1240 is expected to further optimize performance and integrate more functions through technological innovation, helping electric toothbrushes achieve precise intelligent control and efficient energy management, and improving user experience.
