VBQG3322 Product details
Back to previous pageProduct introduction：
VBQG3322 is a dual N+N type MOSFET with the following characteristics:
- Maximum drain voltage (VDS) is 30V, suitable for medium power applications.
- The maximum gate-source voltage (VGS) is ±20V, compatible with a variety of drive circuits.
- Threshold voltage (Vth) is 1.7V, with good switching characteristics.
- When VGS=4.5V, the on-resistance is 26mΩ; when VGS=10V, the on-resistance is 22mΩ, with low on-resistance and low switching loss.
- The maximum drain current (ID) is 5.8A and can withstand a certain current load.
- Using Trench technology, it has excellent thermal characteristics and reliability.

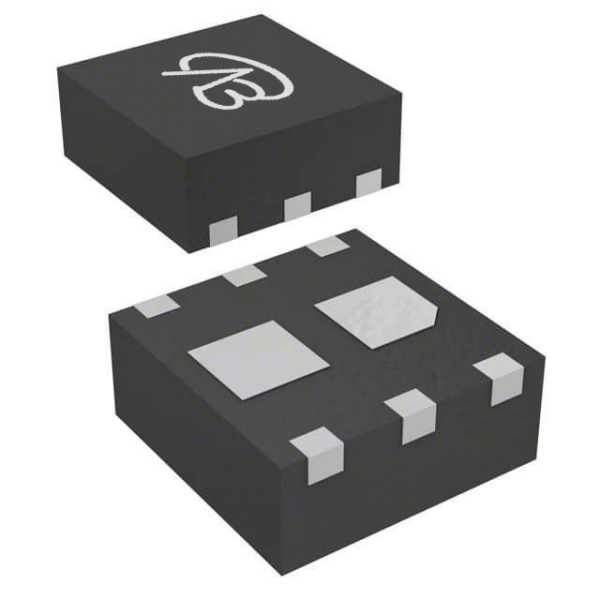

- The package is DFN6(2X2)-B, which is small in size and suitable for compact PCB layout and welding.
- Maximum drain voltage (VDS) is 30V, suitable for medium power applications.
- The maximum gate-source voltage (VGS) is ±20V, compatible with a variety of drive circuits.
- Threshold voltage (Vth) is 1.7V, with good switching characteristics.
- When VGS=4.5V, the on-resistance is 26mΩ; when VGS=10V, the on-resistance is 22mΩ, with low on-resistance and low switching loss.
- The maximum drain current (ID) is 5.8A and can withstand a certain current load.
- Using Trench technology, it has excellent thermal characteristics and reliability.
- The package is DFN6(2X2)-B, which is small in size and suitable for compact PCB layout and welding.
File download
Download PDF document
Download now
-B.png)
Product parameter：
| VB Package | Configuration | VDS(V) | VGS | Vthyp（V） | ID(A) | Rds2.5 | Rds4.5 | Rds10 | Technology |
|---|---|---|---|---|---|---|---|---|---|
| DFN6(2X2)-B | Dual-N+N | 30V | 20（±V） | 1.7V | 5.8A | 26 (mΩ) | 22 (mΩ) | Trench |
Product model: VBQG3322
Brand: VBsemi
parameter:
- Dual N+N type MOSFET
- VDS(V): 30
-VGS(㊣V): 20
-Vth(V): 1.7
- On-resistance (m次) at VGS=4.5V: 26
- On-resistance at VGS=10V (m次): 22
- Maximum drain current ID (A): 5.8
- Technology: Trench
- Package: DFN6(2X2)-B
Brand: VBsemi
parameter:
- Dual N+N type MOSFET
- VDS(V): 30
-VGS(㊣V): 20
-Vth(V): 1.7
- On-resistance (m次) at VGS=4.5V: 26
- On-resistance at VGS=10V (m次): 22
- Maximum drain current ID (A): 5.8
- Technology: Trench
- Package: DFN6(2X2)-B
Domain and module applications：
Application introduction:
1. **Portable electronic devices**: VBQG3322 can be used in power management modules in portable electronic devices such as mobile phones and tablet computers, such as charging management, battery protection, etc., to achieve efficient and stable power output.
2. **LED driver**: As a key component of the LED driver, VBQG3322 can provide reliable switch control and circuit protection, and is suitable for driver modules of LED light strips, car lights and other lighting products.
3. **Automotive electronic module**: In automotive electronic systems, VBQG3322 can be used in vehicle power management modules, body electronic control modules, etc., to provide efficient and reliable power conversion and control functions.
4. **Household appliances**: Suitable for various household appliances, such as TVs, air conditioners, etc., used in power management, motor control and other modules to provide efficient power conversion and control.
5. **Industrial Control**: In industrial automation control systems, VBQG3322 can be used in various circuit switch control modules, such as temperature control, current control, etc., to achieve precise control and protection functions.
1. **Portable electronic devices**: VBQG3322 can be used in power management modules in portable electronic devices such as mobile phones and tablet computers, such as charging management, battery protection, etc., to achieve efficient and stable power output.
2. **LED driver**: As a key component of the LED driver, VBQG3322 can provide reliable switch control and circuit protection, and is suitable for driver modules of LED light strips, car lights and other lighting products.
3. **Automotive electronic module**: In automotive electronic systems, VBQG3322 can be used in vehicle power management modules, body electronic control modules, etc., to provide efficient and reliable power conversion and control functions.
4. **Household appliances**: Suitable for various household appliances, such as TVs, air conditioners, etc., used in power management, motor control and other modules to provide efficient power conversion and control.
5. **Industrial Control**: In industrial automation control systems, VBQG3322 can be used in various circuit switch control modules, such as temperature control, current control, etc., to achieve precise control and protection functions.
* Please note: the above is only an example application scenario, the specific application depends on the requirements and conditions of the system design. When using this device, consult its data sheet for detailed technical specifications and features
