VBQF3316 Product details
Back to previous pageProduct introduction：

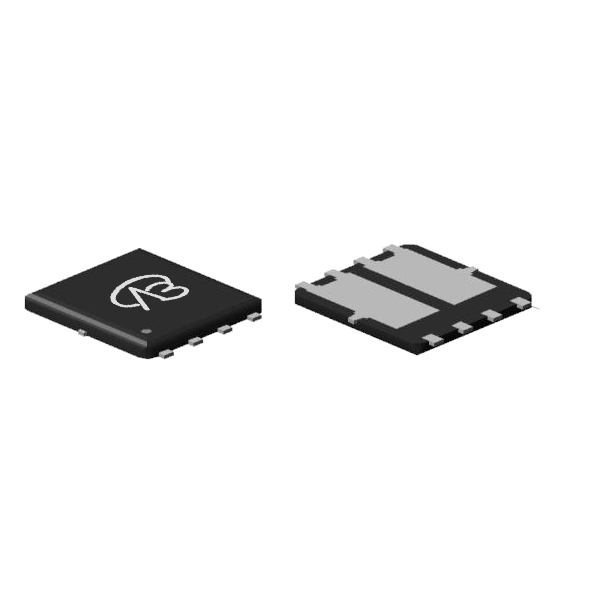

VBQF3316 is a dual N+N channel MOSFET suitable for high performance power control and switching applications. Features a maximum drain-source voltage (VDS) of 30V, a maximum drain current (ID) of 26A, and low drain-source resistance (RDS(on)). It is manufactured using trench technology and packaged as DFN8(3X3)-B. It can be widely used in power switches and control modules of various electronic equipment.
File download
Download PDF document
Download now
-B.png)
Product parameter：
| VB Package | Configuration | VDS(V) | VGS | Vthyp（V） | ID(A) | Rds2.5 | Rds4.5 | Rds10 | Technology |
|---|---|---|---|---|---|---|---|---|---|
| DFN8(3X3)-B | Dual-N+N | 30V | 20（±V） | 1.7V | 26A | 20 (mΩ) | 16 (mΩ) | Trench |
Product model: VBQF3316
Brand: VBsemi
parameter:
- MOSFET type: Dual N+N channel
- Maximum drain-source voltage (VDS): 30V
- Maximum gate-source voltage (VGS): ㊣20V
- Threshold voltage (Vth): 1.7V
- Drain-source resistance (RDS(on)) at VGS=4.5V: 20m次
- Drain-source resistance (RDS(on)) at VGS=10V: 16m次
- Maximum drain current (ID): 26A
- Technology: Trench technology
- Package: DFN8(3X3)-B
Brand: VBsemi
parameter:
- MOSFET type: Dual N+N channel
- Maximum drain-source voltage (VDS): 30V
- Maximum gate-source voltage (VGS): ㊣20V
- Threshold voltage (Vth): 1.7V
- Drain-source resistance (RDS(on)) at VGS=4.5V: 20m次
- Drain-source resistance (RDS(on)) at VGS=10V: 16m次
- Maximum drain current (ID): 26A
- Technology: Trench technology
- Package: DFN8(3X3)-B
Domain and module applications：
for example:
1. **Power Tool Module**: VBQF3316 can be used to design high-power power tool modules, such as electric drills, electric hammers, and electric lawn mowers. Its high drain current and low drain resistance provide sufficient power output to meet the needs of power tools when operating at high loads and high speeds.
2. **Direct current-to-direct current (DC-DC) conversion module**: In the power management system, VBQF3316 can be used as a power switching device in a high-performance DC-DC converter module to achieve efficient conversion between different voltages and adjust. Its stable characteristics and high power density make it an important component in power management systems.
3. **Battery pack management module**: In electric vehicles and energy storage systems, VBQF3316 can be used as a power switching device in the battery pack management module to realize charge and discharge control and protection of the battery pack. Its high drain current and low drain resistance ensure safe operation of the battery pack and extend its service life.
4. **LED lighting module**: In LED lighting systems, VBQF3316 can be used to design high-power LED driver modules to achieve brightness adjustment and color control of LED lamps. Its stable characteristics and high power density make it an ideal choice in LED lighting systems.
* Please note: the above is only an example application scenario, the specific application depends on the requirements and conditions of the system design. When using this device, consult its data sheet for detailed technical specifications and features
