VBN1204M Product details
Back to previous pageProduct introduction：
VBN1204M is a single N-channel MOSFET with high withstand voltage, low threshold voltage and moderate on-resistance. It is suitable for the design of various medium-power electronic equipment.
File download
Download PDF document
Download now
Product parameter：
| VB Package | Configuration | VDS(V) | VGS | Vthyp（V） | ID(A) | Rds2.5 | Rds4.5 | Rds10 | Technology |
|---|---|---|---|---|---|---|---|---|---|
| TO262 | Single-N | 200V | 20（±V） | 3V | 10A | 430(mΩ) | Trench |
parameter:
- Type: Single N-channel MOSFET
- Rated drain-source voltage (VDS): 200V
- Rated gate-source voltage (VGS): ㊣20V
- Threshold voltage (Vth): 3V
- Drain-source on-resistance (m次) when gate-source voltage is 10V: 430m次
- Drain current (ID): 10A
- Technology: Trench Gate Structure

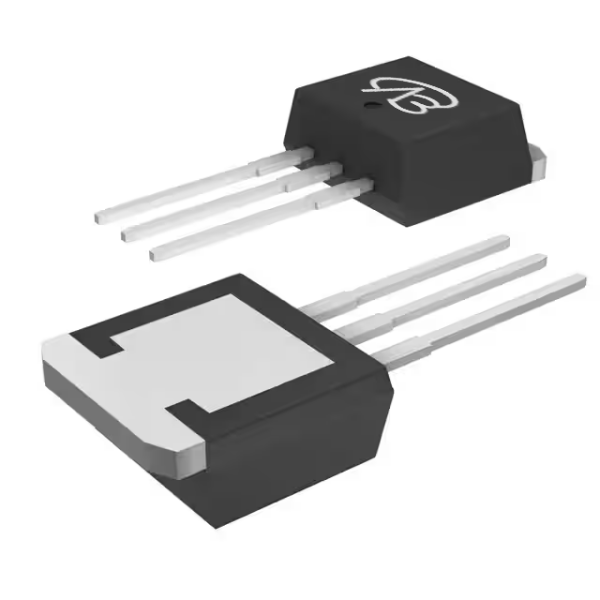

-Package: TO262
- Type: Single N-channel MOSFET
- Rated drain-source voltage (VDS): 200V
- Rated gate-source voltage (VGS): ㊣20V
- Threshold voltage (Vth): 3V
- Drain-source on-resistance (m次) when gate-source voltage is 10V: 430m次
- Drain current (ID): 10A
- Technology: Trench Gate Structure
-Package: TO262
Domain and module applications：
The following are some areas and corresponding modules that this product is applicable to:
1. Power inverter module:
VBN1204M can be used to design power inverter modules to convert DC power into AC power, and is widely used in UPS power supplies, solar inverters, electric vehicle chargers and other fields. Its high drain-source voltage and reliable performance make it an important switching element in inverters.
2. Motor drive module:
In various medium-power motor control systems, the VBN1204M can be used as a key component of the motor driver module. Suitable for motor controllers in industrial machinery, electric vehicles, household appliances and other fields, such as fan controllers, pump controllers and electric vehicle drive controllers.
3. Electric vehicle charging module:
As part of the electric vehicle charging module, VBN1204M can be used to design DC fast chargers and AC charging piles for electric vehicles. Its high drain-source voltage and stable performance enable efficient and safe charging processes in electric vehicle charging systems.
4. Industrial control module:
In the field of industrial automation, VBN1204M can be used to design various medium-power industrial control modules, such as PLC controllers, industrial robots and automated production lines. Its reliability and stability make it an important component in industrial control systems, ensuring the normal operation of equipment and improving production efficiency.
1. Power inverter module:
VBN1204M can be used to design power inverter modules to convert DC power into AC power, and is widely used in UPS power supplies, solar inverters, electric vehicle chargers and other fields. Its high drain-source voltage and reliable performance make it an important switching element in inverters.
2. Motor drive module:
In various medium-power motor control systems, the VBN1204M can be used as a key component of the motor driver module. Suitable for motor controllers in industrial machinery, electric vehicles, household appliances and other fields, such as fan controllers, pump controllers and electric vehicle drive controllers.
3. Electric vehicle charging module:
As part of the electric vehicle charging module, VBN1204M can be used to design DC fast chargers and AC charging piles for electric vehicles. Its high drain-source voltage and stable performance enable efficient and safe charging processes in electric vehicle charging systems.
4. Industrial control module:
In the field of industrial automation, VBN1204M can be used to design various medium-power industrial control modules, such as PLC controllers, industrial robots and automated production lines. Its reliability and stability make it an important component in industrial control systems, ensuring the normal operation of equipment and improving production efficiency.
* Please note: the above is only an example application scenario, the specific application depends on the requirements and conditions of the system design. When using this device, consult its data sheet for detailed technical specifications and features
