The VBGMB1103 is a single N-channel MOSFET with 100V drain-source voltage tolerance. Its features include low gate-source voltage drop (Vth=3V), extremely low on-resistance (as low as 2.9mΩ), manufactured using SGT technology, and packaged in TO220F. It is suitable for fields and modules that require high voltage withstand capability, low on-resistance and stability, such as electric vehicle power modules, industrial automation equipment, solar inverters and home appliance control modules.
Download now
| VB Package | Configuration | VDS(V) | VGS | Vthyp（V） | ID(A) | Rds2.5 | Rds4.5 | Rds10 | Technology |
|---|---|---|---|---|---|---|---|---|---|
| TO220F | Single-N | 100V | 20（±V） | 3V | 80A | 2.9(mΩ) | SGT |
Product model: VBGMB1103
Brand: VBsemi
parameter:
- Voltage parameters:
- VDS(V): 100V
- VGS(㊣V): 20V
- Vth(V)ㄩ3V
- Resistance parameters:
- On-resistance when VGS=10V: 2.9m次
- Maximum current: 80A
- Technology: SGT

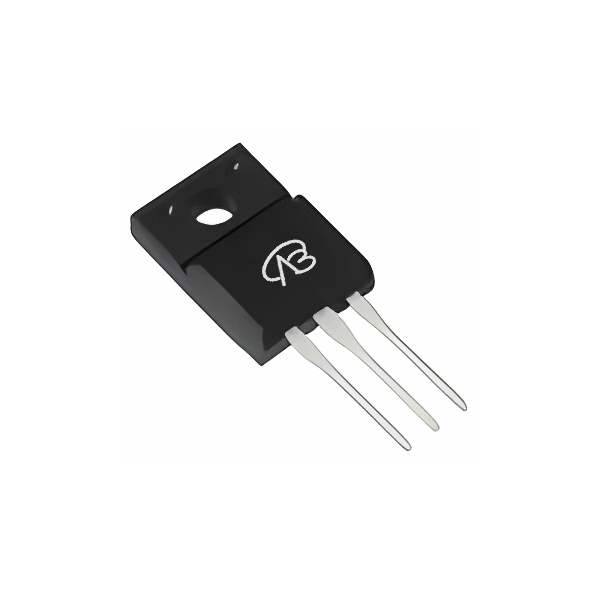

Package: TO220F
for example:
1. **Electric vehicle power module**: VBGMB1103 is suitable for power switches in electric vehicle power modules. It can provide stable power output under high voltage and high current conditions, ensuring the efficient operation and safety of the electric vehicle system.
2. **Industrial automation equipment**: In the field of industrial automation, VBGMB1103 can be used as a power switching component in industrial equipment, such as motor controllers, frequency converters, etc., which can provide stable power output and current control to ensure the stability of the equipment. run.
3. **Solar Inverter**: In solar power generation systems, VBGMB1103 can be used as a key component of the inverter to convert the power generated by DC solar panels into AC power. Its high voltage withstand capability and low The on-resistance characteristics ensure the stability and efficiency of the inverter.
4. **Home appliance control module**: As a power switch in the home appliance control module, VBGMB1103 can be used to control the start, stop and power regulation of household appliances such as air conditioners, washing machines, etc., improving the energy efficiency and ease of use of household appliances.
