**Product model:** AO8810&14-VB.
.
**Silk screen:** VBC6N2014.
.
**Brand:** VBsemi.
.
** Parameters: **.
- Package: TSSOP8.
- Channel type: 2 N—Channel.
- Rated voltage: 20V.
- Rated current: 7.6A.
- Static on-resistance (RDS(ON)): 13mΩ @ VGS=4.5V, VGS=12V.
- Threshold voltage (Vth): 0.6V.
.

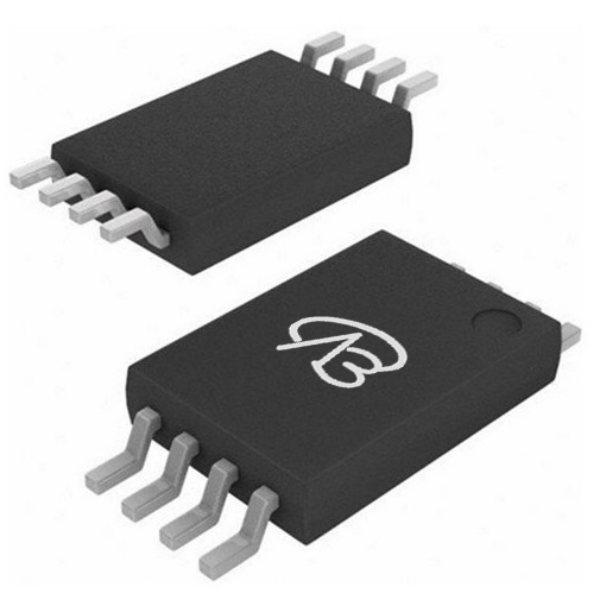

**Package:** TSSOP8.
.
**Detailed parameter description:**.
AO8810&14-VB is a dual N-Channel field effect transistor in TSSOP8 package. Each channel is rated at 20V, rated current is 7.6A, and has a low static on-resistance (RDS(ON)) of 13mΩ at VGS=4.5V or VGS=12V. The threshold voltage (Vth) is 0.6V. This device is suitable for medium power and low voltage applications and provides efficient power switching performance. .
.
**Application introduction:**.
AO8810&14-VB is suitable for power modules in various fields, including but not limited to:.
1. **Power module:** Use It is used in low-voltage, medium-power regulated power supplies, switching power supplies and other applications to achieve energy conversion. .
2. **Battery Management:** As part of the battery management module, it realizes efficient charge and discharge control of the battery. .
3. **Power Inverter:** Used for low-voltage, medium-power inverter applications such as solar inverters and electric vehicle inverters. .
.
**Function:**.
Among the above modules, the main function of AO8810&14-VB is to realize medium power and low voltage switching control to ensure the stability and efficient performance of the module. .
.
**Precautions for use:**.
1. **Electrostatic protection:** During operation, anti-static measures need to be taken to avoid damage to the device. .
2. **Heat dissipation:** Pay attention to the heat dissipation of the device and ensure it is within the rated operating temperature range. .
3. **Power supply matching:** In the design, ensure that the power supply of the device matches its rated parameters to ensure performance and reliability. .
4. **Working conditions:** Understand and comply with the working conditions and electrical characteristics of the device, and ensure it is used under the specified working conditions. .
.
These suggestions are intended to ensure the reliability and performance of the device. Please refer to the device data sheet and technical specifications provided by the manufacturer for specific use.
