VBFB17R11S Product details
Back to previous pageProduct introduction：
Product introduction:

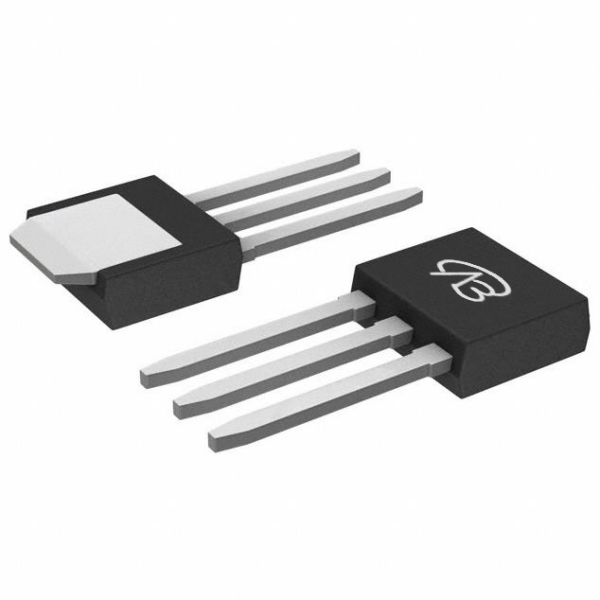

VBsemi's VBFB17R11S is a single N-channel power MOSFET manufactured using SJ_Multi-EPI technology. Its main features include a maximum drain-source voltage (VDS) of 700V, a maximum gate-source voltage (VGS) of ±30V, a threshold voltage (Vth) of 3.5V, an on-resistance of 450mΩ at VGS=10V, and a maximum Drain current (ID) is 11A. The package form is TO251.
VBsemi's VBFB17R11S is a single N-channel power MOSFET manufactured using SJ_Multi-EPI technology. Its main features include a maximum drain-source voltage (VDS) of 700V, a maximum gate-source voltage (VGS) of ±30V, a threshold voltage (Vth) of 3.5V, an on-resistance of 450mΩ at VGS=10V, and a maximum Drain current (ID) is 11A. The package form is TO251.
File download
Download PDF document
Download now
Product parameter：
| VB Package | Configuration | VDS(V) | VGS | Vthyp（V） | ID(A) | Rds2.5 | Rds4.5 | Rds10 | Technology |
|---|---|---|---|---|---|---|---|---|---|
| TO251 | Single-N | 700V | 30（±V） | 3.5V | 11A | 450 (mΩ) | SJ_Multi-EPI |
Detailed parameter description:
- VDS(V): 700V
- VGS(㊣V): ㊣30V
- Vth(V): 3.5V
- On-resistance (m次) when VGS=10V: 450m次
- ID (A): 11A
- Technology: SJ_Multi-EPI
-Package: TO251
- VDS(V): 700V
- VGS(㊣V): ㊣30V
- Vth(V): 3.5V
- On-resistance (m次) when VGS=10V: 450m次
- ID (A): 11A
- Technology: SJ_Multi-EPI
-Package: TO251
Domain and module applications：
Examples of application areas and modules:
- Solar inverter: suitable for switching circuits in solar inverters to achieve high-efficiency conversion from solar panels to the grid.
- Automotive electronic systems: Used as power switches in automotive electronic systems, such as battery management systems and electric motor control modules for electric vehicles.
-Industrial automation equipment: used as high-voltage switching components in industrial automation equipment to achieve precise control and protection of equipment.
- Solar inverter: suitable for switching circuits in solar inverters to achieve high-efficiency conversion from solar panels to the grid.
- Automotive electronic systems: Used as power switches in automotive electronic systems, such as battery management systems and electric motor control modules for electric vehicles.
-Industrial automation equipment: used as high-voltage switching components in industrial automation equipment to achieve precise control and protection of equipment.
* Please note: the above is only an example application scenario, the specific application depends on the requirements and conditions of the system design. When using this device, consult its data sheet for detailed technical specifications and features
