Product introduction：
VBW1254N is a Single N-channel MOSFET launched by VBsemi Company. It has the following characteristics:
- Rated drain-source voltage (VDS) is 250V, suitable for medium and high voltage applications;
- Gate-source voltage (VGS) is ±20V, with a large operating range;
- Threshold voltage (Vth) is 3.5V, with excellent turn-on characteristics;
- The on-resistance (RDS(on)) is 40mΩ when the gate voltage is 10V. The on-resistance is low, which can reduce power consumption and improve efficiency;
- The maximum drain current (ID) is 60A, with large operating current capacity;
- Using Trench technology, it has stable and reliable performance;

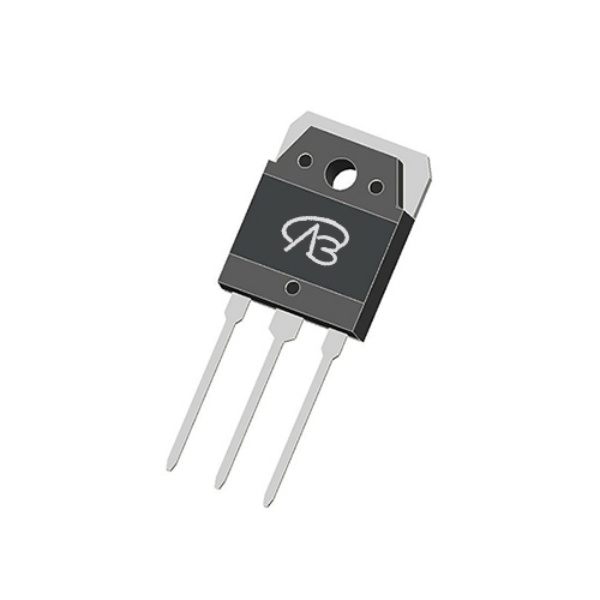

- The packaging form is TO3P, which has good heat dissipation performance and mechanical strength.
File download
Domain and module applications：
Application introduction:
VBW1254N is suitable for a variety of fields and modules, including but not limited to:
1. Power electronic module: Due to its higher rated voltage and larger current capacity, VBW1254N can be used in high-voltage power electronic modules, such as power converters, electric vehicle charging piles and industrial power frequency regulators, to achieve efficient and stable power conversion. and control.
2. High-frequency switch module: In high-frequency electronic equipment, VBW1254N can be used as a key component of high-frequency switch modules, such as communication equipment, radar systems, and high-frequency power amplifiers, providing stable and efficient switching control functions.
3. Drive module: The low on-resistance and large current capacity of VBW1254N make it very suitable for use as drive modules, such as motor drives, lighting drives and electric vehicle controllers, to improve system efficiency and performance.
4. Solar inverter module: In solar power generation systems, VBW1254N can be used as a key component of the inverter module to achieve efficient conversion and stable output of solar energy.
5. Automotive electronic modules: Due to its high voltage and high current characteristics, VBW1254N can be used in automotive electronic modules, such as electric vehicle drive systems, battery management systems and vehicle chargers, etc., to improve the power performance and safety of vehicles.
The above are application examples of VBW1254N products in various fields and modules, illustrating its advantages and applicability in different application scenarios.
* Please note: the above is only an example application scenario, the specific application depends on the requirements and conditions of the system design. When using this device, consult its data sheet for detailed technical specifications and features
