VBGQT1400 Product details
Back to previous pageProduct introduction：
VBsemi's VBGQT1400 is a single N-type MOSFET designed for various high-power and high-efficiency applications, particularly in areas such as power management, electric vehicles, and industrial control.
File download
Download PDF document
Download now
Product parameter：
| VB Package | Configuration | VDS(V) | VGS | Vthyp（V） | ID(A) | Rds2.5 | Rds4.5 | Rds10 | Technology |
|---|---|---|---|---|---|---|---|---|---|
| TOLL | Single-N | 40V | ±20V | 3V | 350A | 0.63(mΩ) | SGT |
- Drain-Source Voltage (VDS): 40V
- Gate-Source Voltage (VGS): ±20V
- Threshold Voltage (Vth): 3V
- On-Resistance at VGS=10V: 0.63mΩ
- Maximum Drain Current (ID): 350A
- Technology: SGT (Super Junction MOSFET)

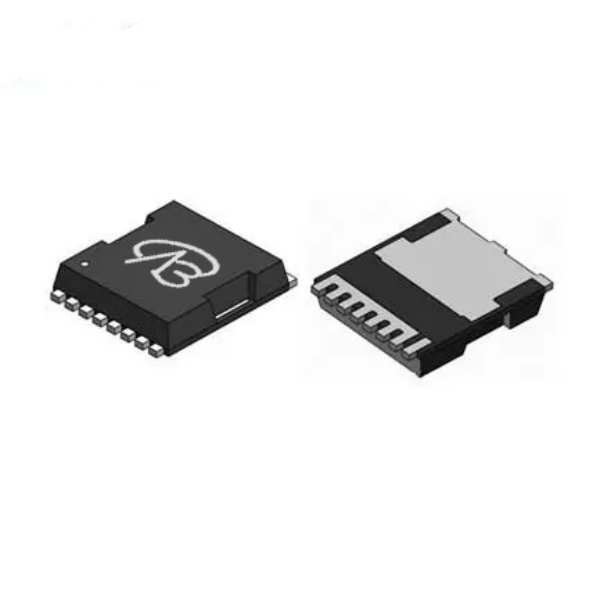

- Package: TOLL
- Gate-Source Voltage (VGS): ±20V
- Threshold Voltage (Vth): 3V
- On-Resistance at VGS=10V: 0.63mΩ
- Maximum Drain Current (ID): 350A
- Technology: SGT (Super Junction MOSFET)
- Package: TOLL
Domain and module applications：
Here are some example application scenarios and corresponding modules:
1. Electric Vehicle Drive Module:
The high current and low on-resistance of VBGQT1400 make it highly suitable for use in motor drive modules for electric vehicles. It can assist in achieving efficient energy conversion and provide sufficient power output to meet the propulsion needs of electric vehicles.
2. Industrial Power Supply Module:
In the field of industrial control, VBGQT1400 can be utilized to design high-performance industrial power supply modules for driving various industrial equipment and machinery. Its high voltage and current capabilities enable it to handle large capacity loads while maintaining stable power outputs.
3. Power Electronic Converter Module:
This MOSFET is also applicable for various power electronic converter modules, such as DC-DC converters, DC-AC inverters, etc. Its low on-resistance and high drain current capability contribute to improving conversion efficiency and reducing energy losses.
In summary, VBGQT1400 is suitable for applications requiring high power, efficiency, and reliability, particularly in the fields of electric vehicles, industrial control, and power electronics.
* Please note: the above is only an example application scenario, the specific application depends on the requirements and conditions of the system design. When using this device, consult its data sheet for detailed technical specifications and features
