Introduction

MOSFETs are common discrete devices primarily used to convert changes in input voltage into changes in output current. They can be classified into two types based on substrate doping: N-channel and P-channel. By controlling the voltage on the gate, they regulate the current between the source and drain, thus enabling switching functionality.

In this edition, VBsemi introduces a recently launched N-channel MOSFET product, the VBL7601, suitable for motor drive circuits, chargers, and other circuits. This product adopts advanced chip mounting technology, significantly improving the thermal performance of the package.

This packaging design is well-suited for applications requiring high power and efficiency in compact system sizes. Examples include automotive DC-DC converters, automotive air compressor controls, photovoltaic inverters, motor drives, UPS power supplies, and switch-mode power supplies.

Product Features

The VBL7601 from VBsemi is an N-channel MOSFET with excellent performance characteristics and operation principles. Specifically, when a positive voltage is applied to the gate, a conductive channel forms, connecting the source and drain, enabling conduction. Conversely, when a negative voltage is applied to the gate, no conductive path is formed, resulting in cutoff.

The VBL7601 has low on-resistance, fast switching speed, and high load current capability.

Referencing the specifications in the datasheet below: drain-source voltage is 30V, gate-source voltage is ±20V, drain current is 200A, on-resistance is 0.002, and other parameters are referenced accordingly.

Package Performance

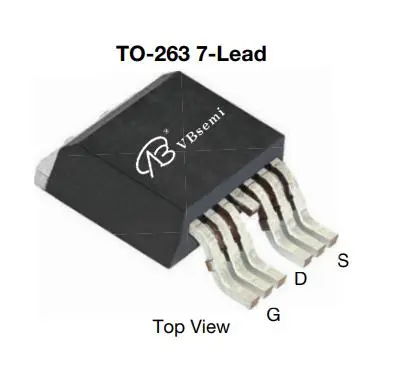

The VBL7601 utilizes the TO-263-7L package, a surface-mount package form utilizing advanced encapsulation technology. Compared to traditional through-hole packages, it is more compact in size and offers great convenience during surface-mount soldering processes.

This package features multiple pins, which are connected to the source (S) in parallel, significantly reducing the package impedance. Consequently, in high-current operating environments, it effectively reduces conduction losses and enhances the overall circuit performance.

Product Applications

With its outstanding electrical performance, the VBL7601 exhibits stability, reliability, and low power consumption, making it an ideal choice for many customers.

The VBL7601 performs excellently in various circuit applications, including drive, switch, amplification, regulation, filtering, protection, and charging. Its applications are extensive, including chargers, adapters, inverters, power supplies, power tools, electronic cigarettes, optocouplers, small household appliances, energy storage devices, smart water meters, routers, set-top boxes, and automotive electronic products.

The following are highlights of its applications:

Signal Amplification Circuits: Its high input impedance and low output impedance play a crucial role in ensuring accurate signal amplification and driving, especially in RF amplification, audio amplification, and power amplification fields.

Motor Drive: The VBL7601's low on-resistance and fast switching characteristics enable precise motor control.

Power Management: It effectively performs voltage regulation, current control, and power switching operations. By controlling MOSFET conduction and cutoff, it achieves efficient power management in power circuits.

Optocoupling: The VBL7601 effectively amplifies and isolates optoelectronic signals, such as output stage driving and signal isolation of optocouplers.

In the MOSFET selection process, the following points are crucial:

In-depth understanding of product parameters and characteristics: Customers must delve into key parameters of N-channel MOSFETs, such as current, voltage, and power losses, to ensure that the selected devices meet the specific requirements of circuit design.

Consideration of application environments and scenarios: Clarify the MOSFET's application environment, including temperature range and electromagnetic interference, to ensure stable operation under specific conditions.

Achieving efficient operation: Proper MOSFET selection can optimize circuit design, thereby improving system efficiency and reducing energy consumption.
